IRP SPRING KIT, STAGE 1 F/ KTM FACTORY CLUTCH (2013-2024) 920396

$139.95

Available on backorder
Buy it now
Brands:
SKU: 920396

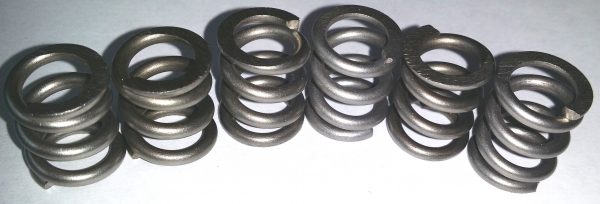

The New Intuitive Race Products High Performance Spring Kit for KTM Stock Disc Clutch 2013-2024
 The new 2013-2021 KTM 50cc automatic disc clutch is very different from the older model shoe clutches and allows for easy adjustment of the clutch.
At Intuitive Race Products, we have been manufacturing automatic centrifugal disc racing clutches for more than 40 years. Using our vast experience we set out to improve the KTM stock 50cc disc clutch. IRP has developed new specially designed clutch springs for the 2013-2024 stock clutch that provide higher pressure and are made to close tolerances out of superior materials. With our innovative design, all six springs are adjustable and active. This enables a more uniform resistance against the balls and pressure plate for improved performance and a cooler running clutch. When using the new IRP springs on the 2013-2024 KTM 50cc Disc clutch, you will be able to run less pressure on the preload adjuster. This does a few things to improve the operation of your clutch and will leave more room for adjustment as conditions require.
The 2013-2021 disc clutch has three adjusters and 6 springs, what this means is there are only three springs that are having pre-load applied to them when adjusting the clutch. The stock springs require adjustment at the higher end of the range and has a possibility of running out of adjustment prematurely. By applying so much pre-load to the active springs the inactive springs play less of a roll and no longer help the active springs to do their job. What happens when this condition occurs is the clutch is only operating on half of the spring’s resistance dampening.
The concept behind the IRP springs is to allow all six springs to be in operation and adjustable allowing the clutch to operate as it was designed to do. The clutch will have a linear feel and more even pressure as it engages.
You will find that you will be able to run your IRP springs at about half of the preload required of the stock springs. You will also be leaving more adjustments as track conditions change. The additional spacers will allow extra adjustment of your springs and a substantial increase in the life of your friction discs.
More aggressive riders want the clutch to hit hard when the motor is coming on the pipe and starting to pull its hardest, the new IRP springs will give you that hard hit and more adjustment than the stock springs.
